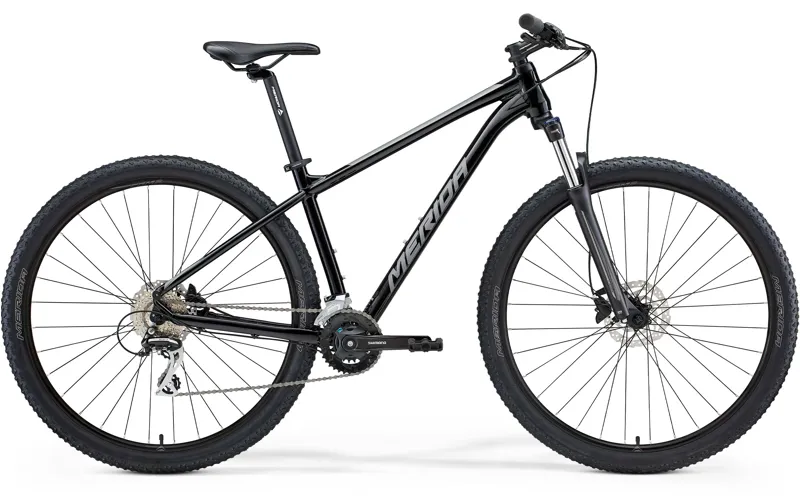

Merida - Big Nine 20 Black/Silver

£650.00 £700.00 7% off

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!


With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Northwood Cycles Returns Policy



Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Additional non-returnable items:

Gift cards

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where no refund or only partial refunds are granted: (if applicable)

Any item not in its original condition is damaged or missing parts for reasons not due to our error.

Any item that is returned more than 30 days after receiving your item.

At the time you have returned your item to the shop, it will then be inspected and unless it is required to be sent back to the manufacturer for further inspection, a decision on approval or rejection will be made and a refund issued via the same payment method was the purchase.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next, contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately, sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at or call us at 01923824174 and bring your item to the shop.


Shipping section: the easiest way to return your product is to bring it into the shop, should you post your product it should be sent to 118 Pinner Road, Northwood, HA6 1BP, United Kingdom.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you may vary.

Merida - Big Nine 20 Black/Silver



  • 16 Speed
  • Hydraulic Brakes
  • Lightweight Alumnium Frame
  • X-taper Headtube
  • Internal Cable routing
  • 29 inch Wheels


29er hardtail with sophisticated TFS aluminium frame, 2 x 8 transmission, lockout fork and Shimano hubs and chainset Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot.

Merida UK chose to upgrade all the Big Nine and Big Seven bikes destined for the UK to use a sophisticated TFS frame featuring the latest technology:

full internal cable routing, for a neat and clean set up,
tapered headtube for future upgrade potential
inboard disc brake mounts to protect the brake and maximise stopping power

Perfectly matching the modern frame Merida have used as much Shimano componentry as possible for reliability.

Merida offer a wide range of sizes, Big Nine for taller riders, Big Seven for shorter riders with a healthy overlap of sizes in between.

For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility chose a Big Seven.
Technical Information
FrameTFS III - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake.Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max Tyre clearance 29" x 2.25"
Rear Shock
ForkSunTour XCT30 HLO; Coil; 100mm travel; lockout. Max tyre clearance 29" x 2.25"
HeadsetMerida M2345
StemMerida CC; aluminium; 31.8mm diameter; 6 degree rise - Length : 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
HandlebarMerida CC; aluminium; 690mm wide; 15mm rise
GripMerida EC
Brake TypeHydraulic disc
Brake LeverShimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
Front BrakeShimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
Rear BrakeShimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
Front TyreMerida K1080; 29" x 2.2"; wire bead
Rear TyreMerida K1080; 29" x 2.2"; wire bead
Wheel Size29"
RimMerida CC; 17mm inner rim width; Material: aluminium
SpokesBlack steel
Front HubShimano TX505; 100x9mm; 32 spokes; Centerlock
Rear HubShimano TX505; 135x9mm; 32 spokes; Centerlock
Front DerailleurShimano FD-M315-TS
Rear DerailleurShimano RD-M360
Shift LeversShimano ST-EF505
ChainSunrace M84
CassetteSunrace M84
ChainsetShimano FC-M315-2; 36-22 chainwheel with 170mm - S, 175mm - M/XXL length crank
Bottom BracketFSA TH-7420ST-W, Cartridge Bearing
PedalsVP Components, VPE-891
SaddleMerida Sport comfort
Seat PostMerida CC; aluminium; 30.9mm diameter; 15mm lay back
Battery Capacity
eBike Display
Sizing Information

We’re all different – and many of us fall between frame sizes

We recommend you try a bike for size at your local Merida dealer (see Dealer Search)

As a rough guide…

  • Forspeed, we suggest you opt for asmallerframe size
  • If you use asuspension seatpost, we recommend deducting approx. 3cm (1 inch) from the frame size


S< 173 cm
M167 - 183 cm
L177 - 190 cm
XL> 187 cm


XS< 163 cm
S157 - 173 cm
M167 - 183 cm
L177 - 190 cm
XL187 - 196 cm
XXL> 192 cm


4XS< 152 cm
3XS148 - 157 cm
XXS153 - 162 cm
XS158 - 167 cm
S163 - 172 cm
S/M168 - 177 cm
M/L173 - 182 cm
L178 - 187 cm
XL> 183 cm


XS< 167 cm
S165 - 177 cm
M173 - 185 cm
L181 - 192 cm
XL> 188 cm


XXS< 149 cm
XS145 - 160 cm
S155 - 170 cm
M161 - 180 cm
L171 - 190 cm
XL> 185 cm


XS< 163 cm
S157 - 173 cm
M167 - 183 cm
L177 - 190 cm
XL> 187 cm


XS< 160 cm
S155 - 170 cm
M161 - 180 cm
L171 - 190 cm
XL> 185 cm


XS< 158 cm
S155 - 165 cm
M160 - 177 cm
L168 - 185 cm
XL> 180 cm
